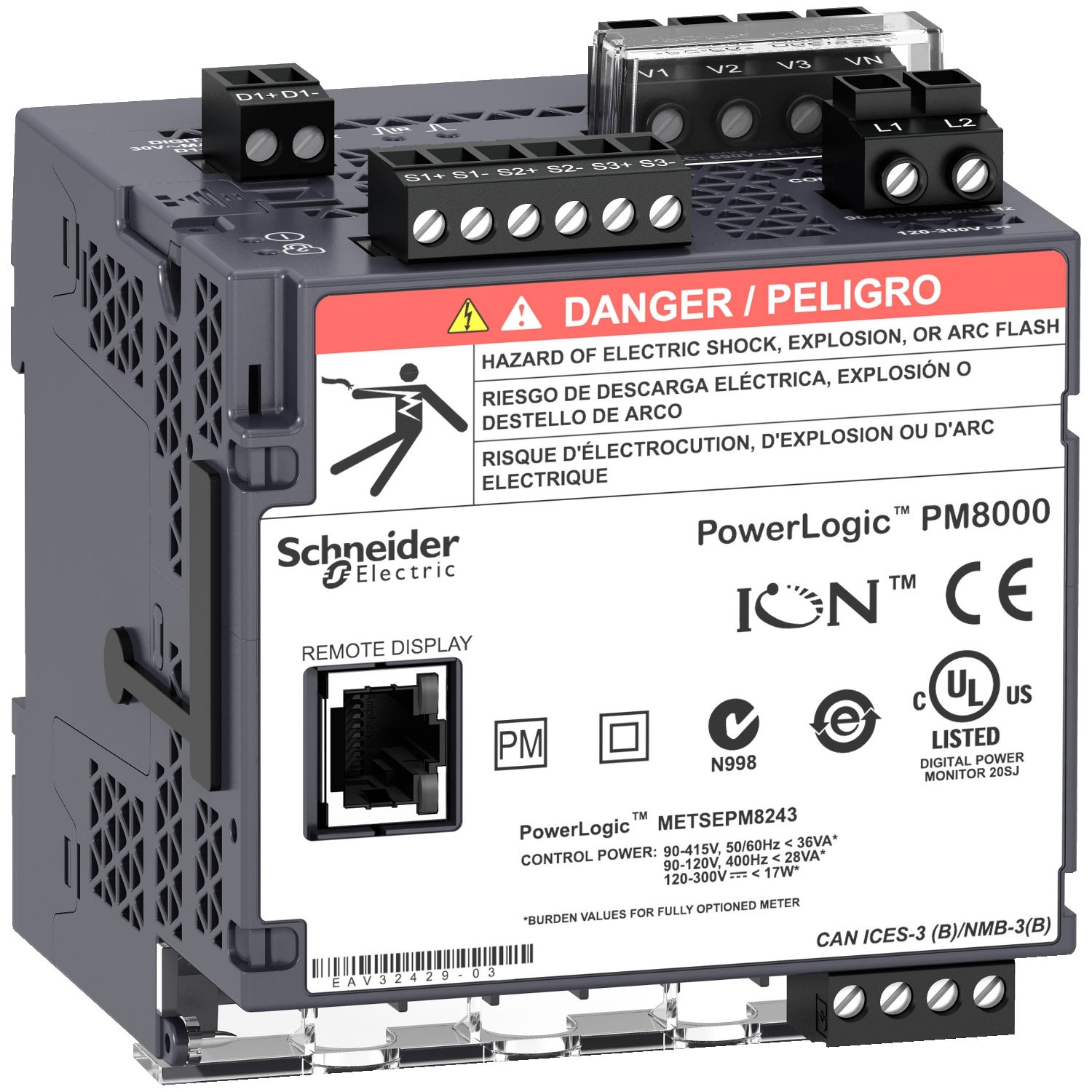

METSEPM8243 Power quality meter ransducer, 512 MB, 256 s/c

METSEPM8243 Power quality meter ransducer, 512 MB, 256 s/c


The PowerLogic PM8000 series meters are compact, cost-effective multifunction power meters that will help you ensure reliability and efficiency of your power-critical facility. They reveal and provide understanding of complex power quality conditions enabling action to be taken to mitigate any issue. The PowerLogic PM8000 series meters have the versatility to perform nearly any job you need a meter to do, wherever you need it! The modular, flexible ION technology architecture enables a simple, building block approach for customizing each meter to any application. With patented Disturbance Direction Detection, revenue grade accuracy, multiple communication ports, onboard power quality analysis, web interface and a color graphical display. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). The PowerLogic PM8000 series provides data quality confidence you can count on. Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 50 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules. I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 90-415 VAC / 110-415 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. DIN rail mounting transducer (no display).

end of May
  • Specifications

    Range PowerLogic
    Product name PowerLogic PM8000
    Device short name PM8243
    Product or Component Type Power meter
    Power quality analysis EN 50160 2010 compliance report
    IEEE 519 2014 compliance report
    IEC 61000-4-30 class S power quality measurement
    up to the 63rd harmonic
    harmonic distortion
    waveform capture
    voltage sag and swell detection
    programmablity (logic and math functions)
    IEC 62586 power quality monitoring
    disturbance direction detection
    rapid voltage change
    Device Application WAGES metering
    Power monitoring
    Type of measurement Current
    Active and reactive power total
    Apparent power total
    Power factor total
    Active and reactive power per phase, rms
    Apparent power per phase, rms
    Power factor per phase, rms
    supply voltage 90...415 V AC 45...65 Hz +/- 10 %
    110...415 V DC +/- 10 %
    Network Frequency 50 Hz
    60 Hz
    Line Rated Current 1 A
    10 A
    5 A
    Poles description 1P + N
    3P + N
    Power Consumption in VA 18 VA 415 V AC
    display type Without Display
    Sampling rate 256 samples/cycle
    Measurement current 50…10000 mA
    Analogue input type Voltage (impedance 5 MOhm)
    Current (impedance 0.3 mOhm)
    Measurement voltage 57…400 V AC 42...69 Hz between phase and neutral
    100…690 V AC 42...69 Hz between phases
    Frequency measurement range 42…69 Hz
    Number of inputs 3 digital 30 V AC
    3 digital 60 V DC
    Measurement accuracy Current +/- 0.1 %
    Voltage +/- 0.1 %
    Active energy +/- 0.2 %
    Accuracy class Class 0.2S active energy IEC 62053-22
    Class 0.2 active energy ANSI C12.20
    Class 0.2 active power IEC 61557-12
    Class 0.5S reactive energy IEC 62053-24
    Class 0.5 power factor IEC 61557-12
    Class 0.2 voltage IEC 61557-12
    Class 0.2 current IEC 61557-12
    Number of Outputs 1 pulse
    Information displayed Voltage
    Energy consumption
    Harmonic distortion
    Communication port protocol Modbus RTU 115 kbauds - 2-wire
    ION 115 kbauds - 2-wire
    IEC 61850
    Modbus TCP/IP
    Ethernet Modbus TCP/IP daisy chain 10/100 Mbit/s
    RSTP 801.1d 2004
    Communication port support ETHERNET
    Screw terminal block RS485
    Communication Network Type IPv6 (internet protocol)
    data recording Harmonics logs
    Sag and swell logs
    GPS synchronisation
    Time stamping
    Data logs
    Waveform logs
    Alarm logs
    Sequence of event recording
    Min/max of instantaneous values
    Event logs
    50 data recorders
    memory capacity 512 MB
    Web services Customizable home page
    File upload/download via FTP
    File upload/download via SFTP
    Web server
    Alarm notification by e-mail
    Viewing of captured waveform (FTP)
    Viewing of captured waveform (web)
    HTTPS server
    Communication Service SMTP e-mail notification
    RSTP support
    NTP time synchronization
    PTP time synchronization
    Cybersecurity Password protection
    Port hardening
    Enable/disable communication ports
    Robust security logs
    Syslog protocol support
    Mounting Mode Clip-on
    Mounting support DIN rail
    installation category III
    Safety Construction III400…690 V conforming to IEC 61010-1:ed. 3
    III400…690 V conforming to EN 61010-1:ed. 3
    III347…600 V conforming to UL 61010-1:ed. 3
    III347…600 V conforming to CSA C22.2 No 61010-1:ed. 3
    Standards IEC 61557-12
    IEC 62052-11
    IEC 62053-22
    IEC 62053-24
    IEEE 1588
    IEC 62586-2
    IEC 61326-1
    Product certifications CE
    Width 3.56 in (90.5 mm)
    Depth 3.57 in (90.8 mm)
    Height 3.56 in (90.5 mm)
    Net Weight 18.62 oz (528 g)
    Electromagnetic compatibility Electrostatic discharge conforming to IEC 61000-4-2
    Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3
    Electrical fast transient/burst immunity test conforming to IEC 61000-4-4
    Surge immunity test conforming to IEC 61000-4-5
    Conducted RF disturbances conforming to IEC 61000-4-6
    Magnetic field at power frequency conforming to IEC 61000-4-8
    Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
    Immunity to impulse waves conforming to IEC 61000-4-12
    Conducted and radiated emissions conforming to EN 55022
    Conducted and radiated emissions conforming to EN 55011
    Conducted and radiated emissions conforming to FCC part 15
    Conducted and radiated emissions conforming to ICES-003
    Conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579
    Surge withstand conforming to IEEE C37.90.1
    IP degree of protection IP30 conforming to IEC 60529
    Relative humidity 5…95 %
    Ambient air temperature for operation -13…158 °F (-25…70 °C)
    Ambient Air Temperature for Storage -40…185 °F (-40…85 °C)
    Operating altitude 9842.52 ft (3000 m)
    Ordering and shipping details
    Category US10PL109797
    Discount Schedule 0PL1
    GTIN 3606480701962
    Returnability Yes
    Country of origin MX
