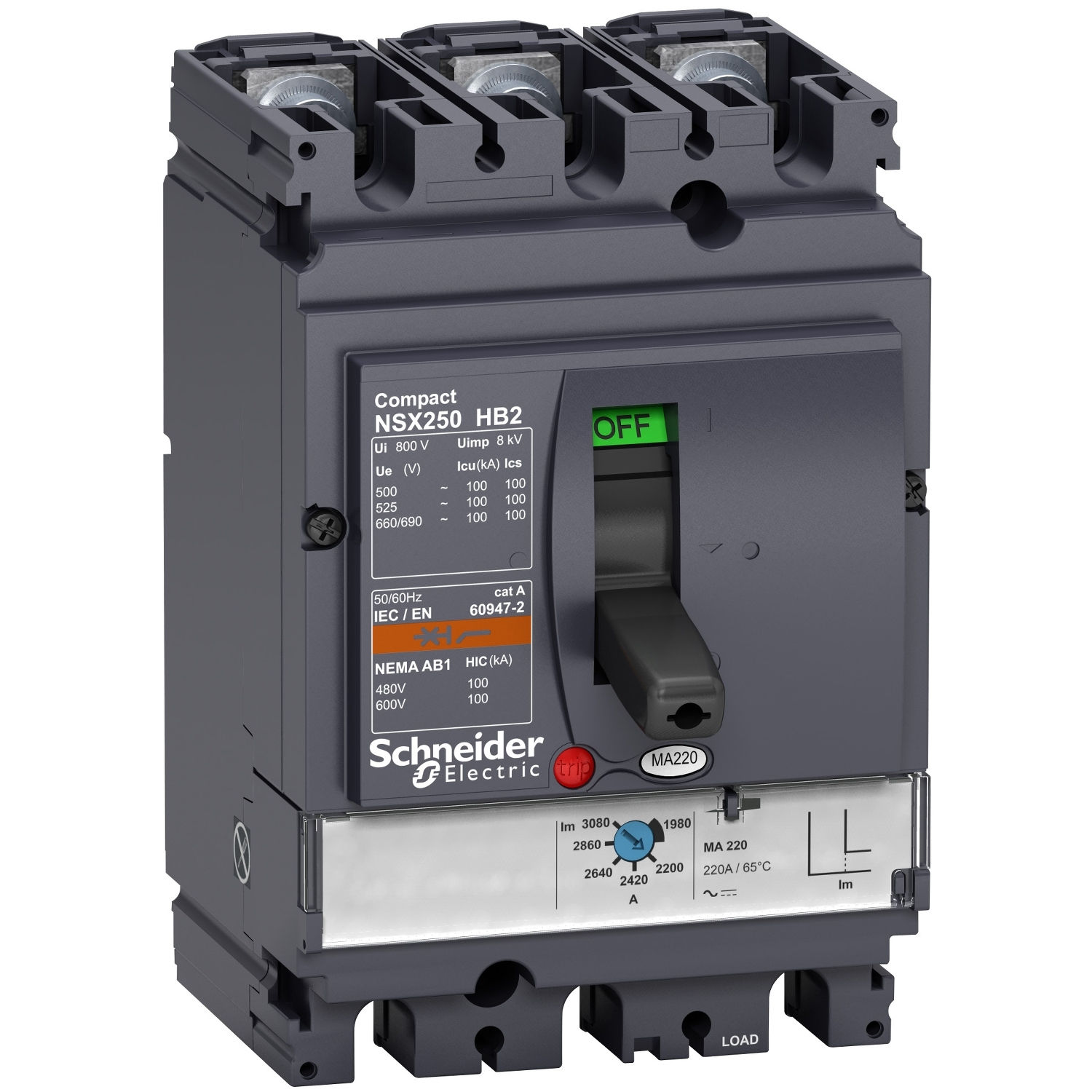

LV433505 Circuit breaker, ComPact NSX250HB2, 100kA/690VAC, MA trip unit 220A
$520.00Price
This Compact NSX250HB2 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 100kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 220A rating magnetic trip unit (MA). MA trip unit provides an adjustable magnetic protection for instantaneous tripping. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX250HB2 is part of Schneider Electric EcoStruxure Power architecture.
Only 3 left in stock
Specifications
Main Range ComPact Product name ComPact NSX Range of Product ComPact NSX100...250 Device short name NSX250HB2 Product or Component Type Circuit breaker Device Application Motor Number of poles 3P Protected poles description 3t Line Rated Current 220 A 149 °F (65 °C) [Ue] rated operational voltage 690 V AC 50/60 Hz Network type AC Network Frequency 50/60 Hz Suitability for isolation Yes EN/IEC 60947-2 Utilisation category Category A [Icu] rated ultimate short-circuit breaking capacity 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2
100 kA Icu 525 V AC 50/60 Hz IEC 60947-2
100 kA Icu 660/690 V AC 50/60 Hz IEC 60947-2Performance level HB2 100 kA 690 V AC Trip unit name MA Trip unit technology Magnetic Trip unit protection functions I Control Type Toggle Circuit breaker mounting mode Fixed Complementary [Ui] rated insulation voltage 800 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 8 kV [Ics] rated service short-circuit breaking capacity 100 kA 500 V AC 50/60 Hz IEC 60947-2
100 kA 525 V AC 50/60 Hz IEC 60947-2
100 kA 660/690 V AC 50/60 Hz IEC 60947-2Mechanical durability 20000 cycles Electrical durability 5000 cycles 690 V In
10000 cycles 690 V In/2
10000 cycles 440 V In
20000 cycles 440 V In/2Mounting Support Backplate Upside connection Front downside connection Front Connection pitch 1.38 in (35 mm) Protection type I : for short-circuit protection (magnetic) Trip unit rating 220 A 149 °F (65 °C) Short-time protection pick-up adjustment type Isd Adjustable [Isd] Short-time protection pick-up adjustment range 9...14 x In earth-leakage protection Without Number of slots for electrical auxiliaries 5 Width (W) 4.13 in (105 mm) Height (H) 6.34 in (161 mm) Depth (D) 3.39 in (86 mm) Net Weight 5.29 lb(US) (2.4 kg)
